Diagnostic Cable With J1939 Green Connector

这里可以自定义设置

Product Description

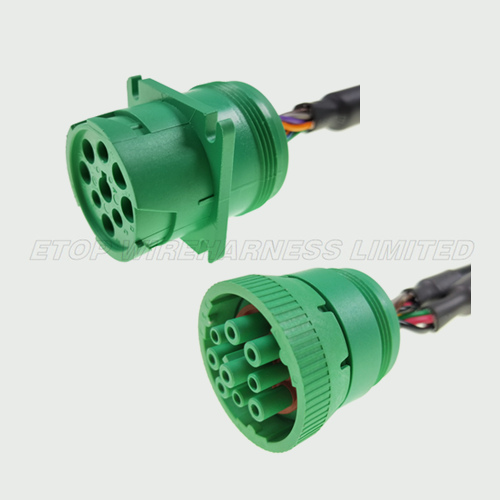

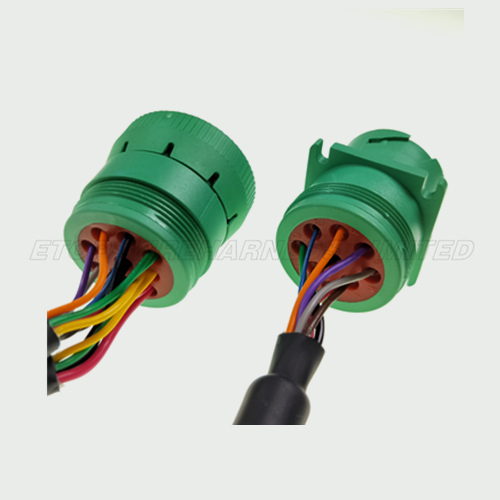

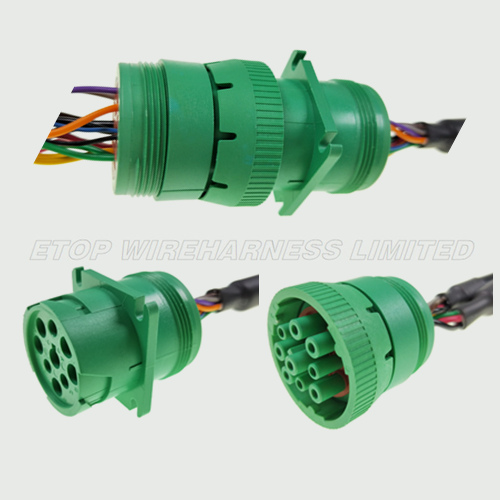

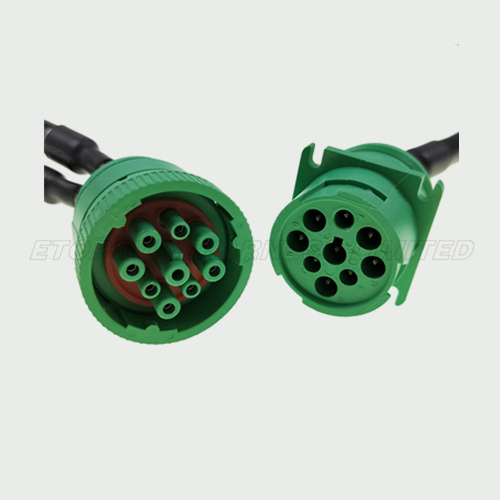

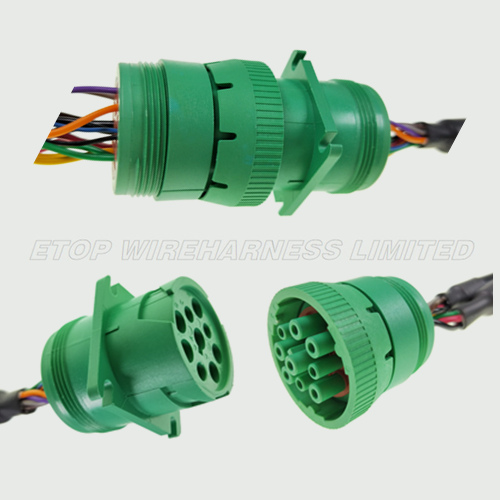

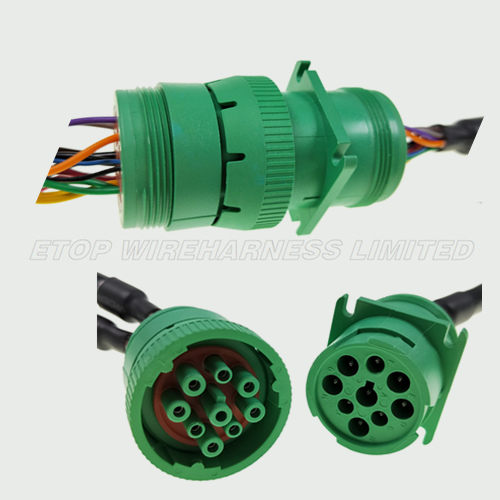

SAE green J1939M to J1939P cable assemblies

The SAE J1939 standard is the replacement for the older J1708 and J1587 protocols. The J1939 standard defines a huge number of parameters which can be monitored and are referred to by Parameter Group Number or PGN. Below are some examples of our software in use collecting J1939 CAN data on the daily route of a waste collection heavy vehicle.

The real time data available for monitoring and on board diagnostics far exceeds previous standards and replaces outdated systems such as mechanical tachographs. Real time monitoring via telematics and integration with GPS and wireless communication systems allows for complete fleet management and monitoring solutions, all at a very low cost of entry.

We can give you a customized data collection solution for the specific parameters you desire.

Product Specifications

Product Name	SAE green J1939M to J1939P cable assemblies
Application	Automobile diagnostic system diesel trucks, buses, on-road vehicles, off-road vehicles, marine propulsion, power generation, and industrial pumping communication systems in agriculture, construction, fire/rescue, and other vehicles.
Cable color	Per customer requirements
Cable Length	Per customer requirements
cable jacket	PE, PP, SR-PVC, PVC...
Cable cross-section	26AWG, 24WG, 20AWG, 18AWG etc
Contact type	Solder or crimp
Connector series	J1939
Suitable Wire Gauge(terminals)	20AWG to 18AW
Quality Certificate	ISO9001, IATF16949, ROHS, UL,SGS, REACH
Performance Test:	100% terminal inspection & 100% electric testing & 100% FQC & AQL=0.65

这里可以自定义设置

Product Details

这里可以自定义设置

01 Cability now offers a full range of custom SAE (Society of Automotive Engineers) J1939 cable assemblies. Cability J1939 cables are made specifically for the application providing the optimum solution to OEM and aftermarket equipment manufacturers. We do not offer a standard product line to end users.

J1939-9Pin Type 2 splitter cable with Jamnut

J1939-9Pin Male to Female*2 cable

J1939 Splitter cable for Truck Trackig Device

J1939 Pass through cable for Truck Trackig Device

SAE J1939-9pin Pass through cable

J1939-9Pin Green Male+Female to OBD female cable

Heavy Vehicle J1939 9-Pin Telematics Cables

ELD cables

这里可以自定义设置

02 Green Type 2 J1939 9pin Splitter Y Cable for Truck Freightliner GPS ELD Tracker Fully Connected work with both J1939 Type I 250Kb/s and Type II 500Kb/s Black or Green Connectors. The cable's pin-out is twisted pairs ,and it will make the signal transmit better than the normal cables . Fits either Twist Lock or Flange Nut Type Dash Mounts (2 Male). Has all 9pins connected fully one by one. Allows 2 devices or cables to be connected
A few of the myriad uses are:

    diesel powertrain systems
    on and off road gasoline powered vehicles
    liquid natural gas LNG vehicles
    agriculture and forestry machinery ISO 11783
    intra vehicle networking for trucks and buses
    power generation and industrial pumping
    truck-trailer communication
    recreational vehicles
    marine systems NMEA2000
    military vehicles MiLCAN
    fleet management systems

这里可以自定义设置

03 These cable assemblies are widely used in automotive diagnostic equipment, vehicle GPS tracking, industrial equipment, agricultural machinery, marine diagnostic equipment, military products, medical equipment, IT/Communication field, water pump, trailer lighting equipment, common trial injector equipment, handheld diagnostic tools.All these products are customized to meet any needs and requirements from the customers all over the world. We mainly offering test lead kits, marine electrical connectors, motorcycle wire harness, truck cable, trailer connector, wiring trailer light, marine wire harness, custom wire harness assembly, plastic enclosure, PCB assembly, etc.

Product Applications

We at OBD Diagnostics Inc have developed a software package for use with our OBD2allinone scan tool for J1939 data logging and diagnostics. The J1939 protocol is used for heavy vehicle and industrial applications, and is based on the OBD2 Controller Area Network, CAN, protocol used in all new vehicles.
A few of the myriad uses are:
